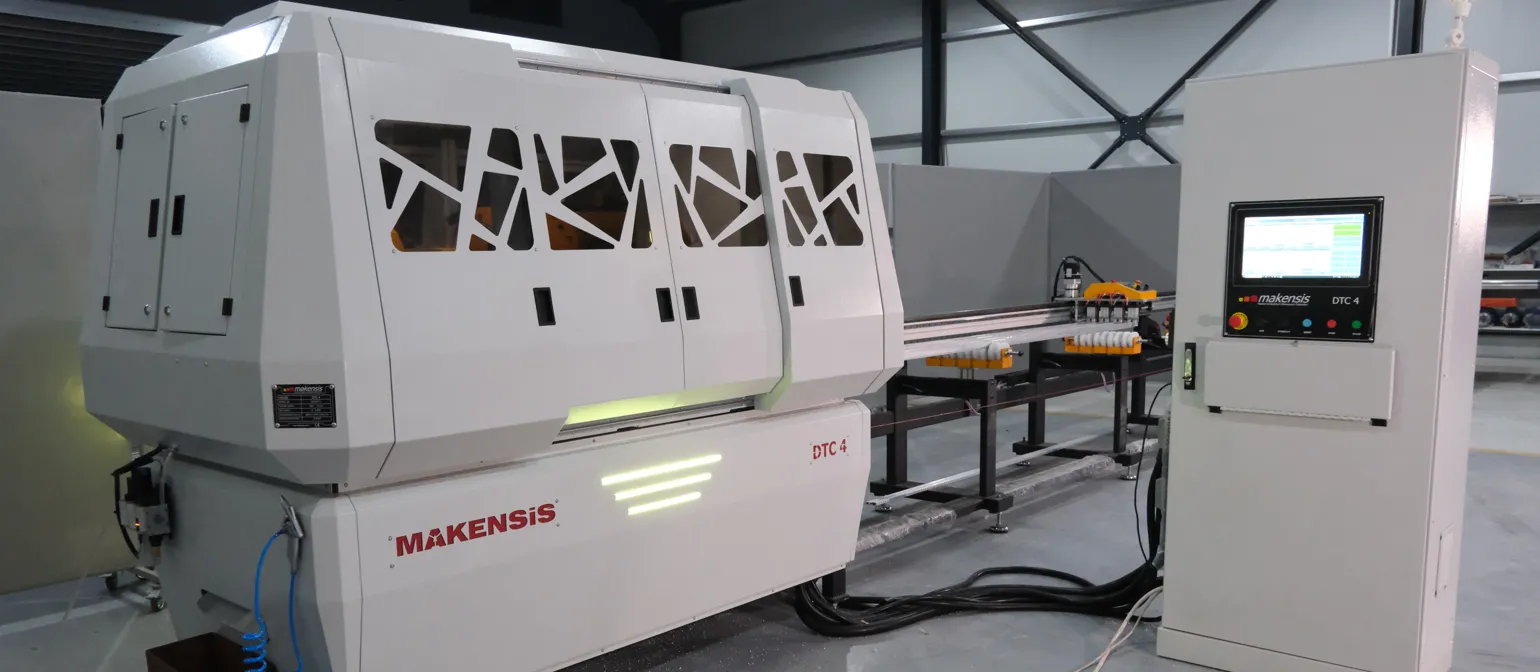

DTC - 4

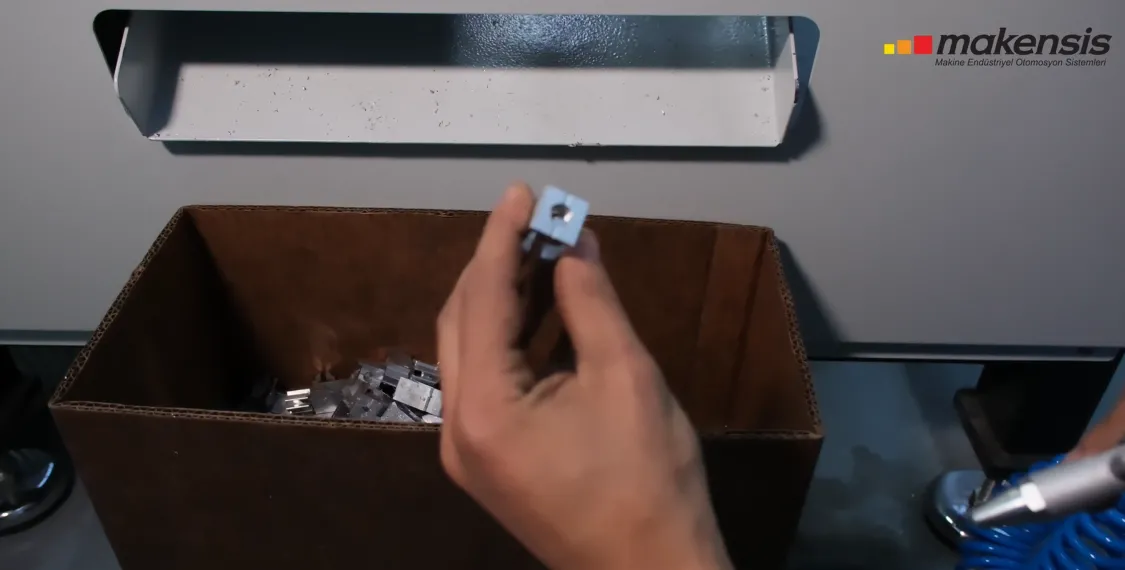

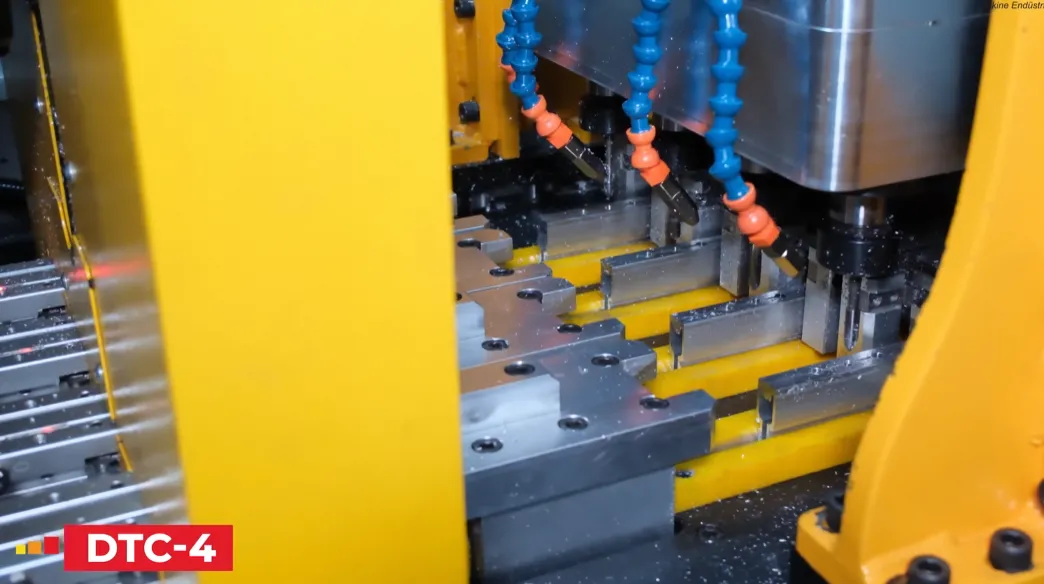

The machine is engineered to handle the connection nuts of solar panel frames, executing drilling, tapping, and cutting operations concurrently within a singular unit. Thanks to the simultaneous processing of four profiles, it allows for the production of one nut every 1.5 seconds.
• All motion axes are precision servo-controlled.

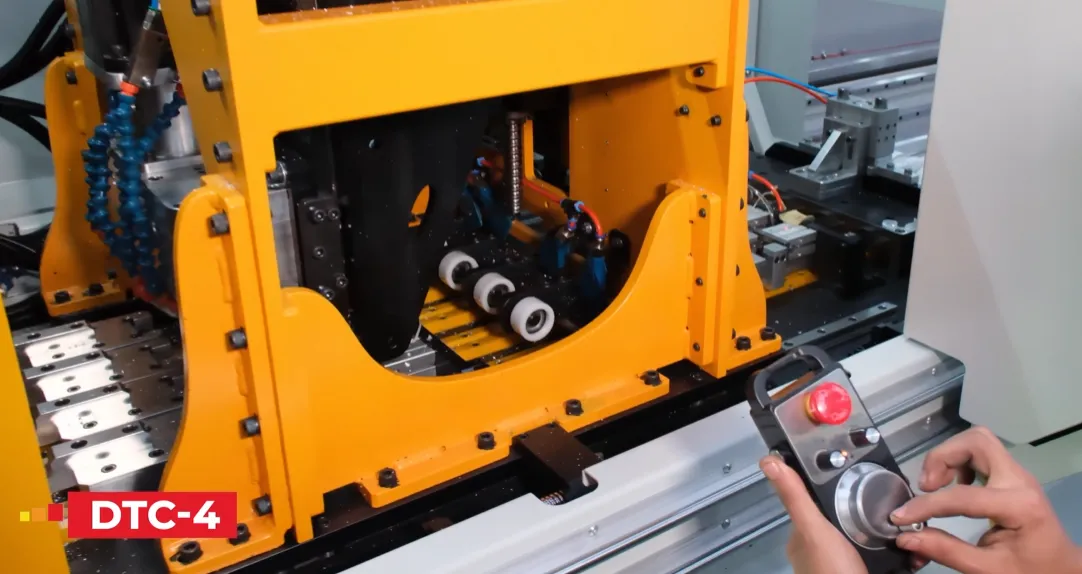

• Through the handwheel, manual control of 6 axes is facilitated.

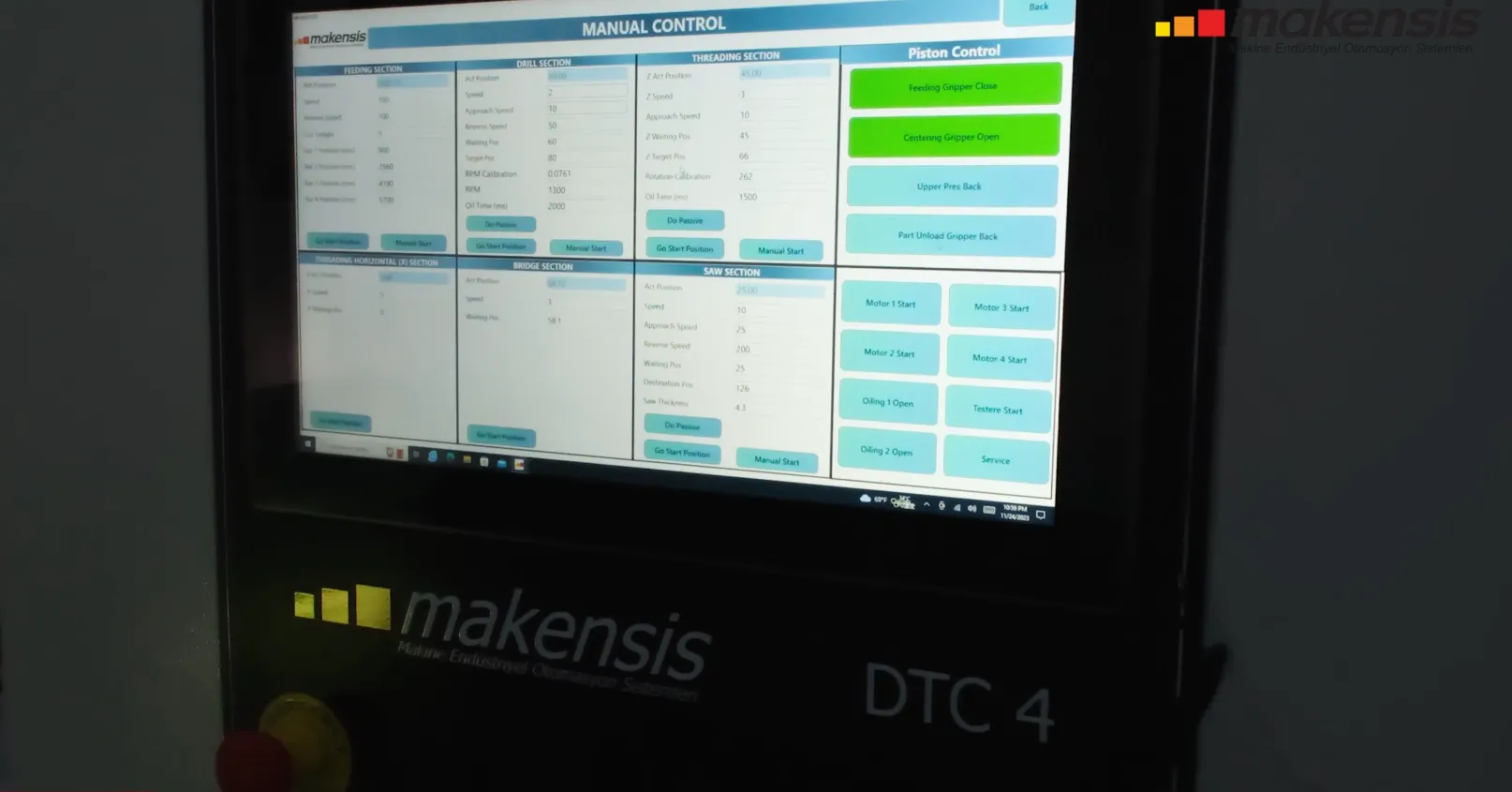

• Equipped with IPC 4 industrial computer hardware.
• Instant service capability is provided with remote connection system.
• The globally renowned Festo brand is utilized in the pneumatic equipment.
• Linear bearing group utilizes Bosch Rexroth brand.
• Thanks to the 9-way automatic lubrication system providing pulverized distribution, it offers extended tool life and low oil consumption.
• Capable of pulling guides between M5 - M10.
• Produces 1 piece every 1,5 seconds with a precision of +/- 0.1mm.
Gallery
